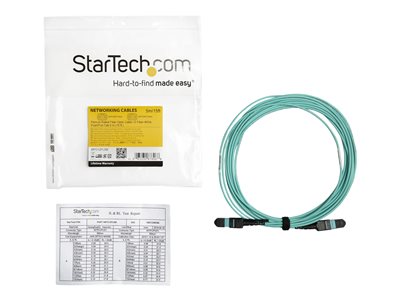

StarTech.com MTP Fiber Optic Cable

15 ft / 5m - OM3 - 40Gb - Push / Pull Tab - Plenum - MPO / MTP Connector - Fiber Patch Cable (MPO12PL5M) - Network cable - MTP/MPO multi-mode (F) push/pull to MTP/MPO multi-mode (F) push/pull - 5 m - fibre optic - 50 / 125 micron - OM3 - plenum - aqua
Out of stock
Additional stock expected 04/07/25
Additional stock expected 04/07/25
Manufacturer StarTech.com
Part number MPO12PL5M
  • €153 Excl VAT
Add to basket

  • Terminate twelve fiber connections using a single 40 Gigabit network cable -- designed for high-density fiber networks

    • Interface between different networking devices at varying speeds
    • Optimize accessibility and install or remove connectors with one hand using the push-and-pull tabs
    • Save circuit card and rack space with twelve times the density of SC connectors
    • Get test data for your fiber cable - an insertion loss and return loss test report is included in each cable bag
    Terminate twelve fiber connections using a single 40 Gigabit network cable -- designed for high-density fiber networks
    Terminate twelve fiber connections using a single 40 Gigabit network cable -- designed for high-density fiber networks
    This MPO/MTP fiber optic cable houses 12 fibers and lets you interface between different networking devices of varying speeds. For example, you can set up a one-to-one connection between two 40Gbps switches or servers. Alternatively, you can connect a 40Gbps switch and break out the 40Gbps into six duplex 10Gbps LC connections on a patch panel or network cassette, which then fans out to individual 10Gbps devices.

    The MTP connector provides twelve times the density of an SC connector and saves circuit card and rack space. Plus, the push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without having to use additional tools.
    Terminate twelve fiber connections using a single 40 Gigabit network cable -- designed for high-density fiber networks
    The MTP to MTP cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.

    Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.

    Applications

    Use in 10/40 Gigabit Ethernet and fiber channel applications

    Connect 40Gbps MPO/MTP devices such as fiber patch panels, hubs, switches, media converters, and routers

    Supports 40GBASE-SR4 and 100GBASE-SR10 in applicable parallel optics networks

    Terminate twelve fiber connections using a single 40 Gigabit network cable - designed for high-density fiber networks. This MPO/MTP fiber optic cable houses 12 fibers and lets you interface between different networking devices of varying speeds. For example, you can set up a one-to-one connection between two 40Gbps switches or servers. Alternatively, you can connect a 40Gbps switch and break out the 40Gbps into six duplex 10Gbps LC connections on a patch panel or network cassette, which then fans out to individual 10Gbps devices.

    The MTP connector provides twelve times the density of an SC connector and saves circuit card and rack space. Plus, the push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without having to use additional tools.

    The MTP to MTP cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.

    Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.

    • Interface between different networking devices at varying speeds
    • Optimize accessibility and install or remove connectors with one hand using the push-and-pull tabs
    • MTP connectors use Type A straight-through pinout
